LXL Hydraulic Slide Gate Operator

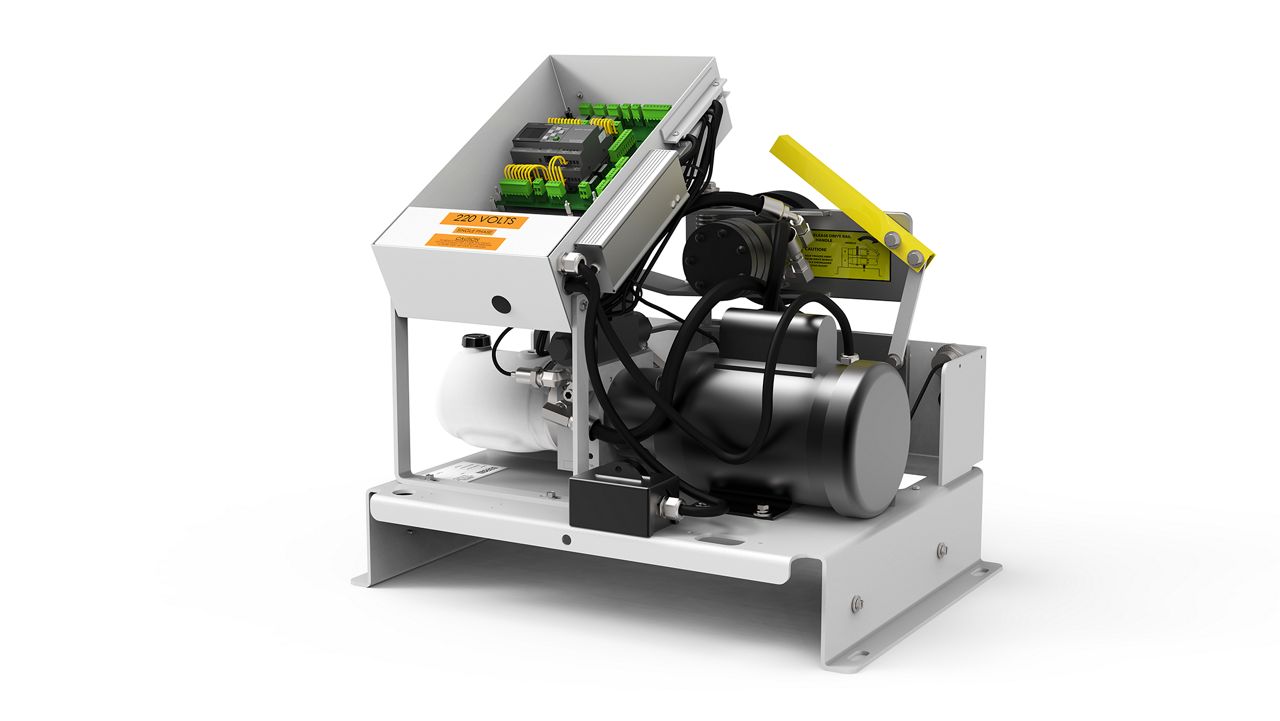

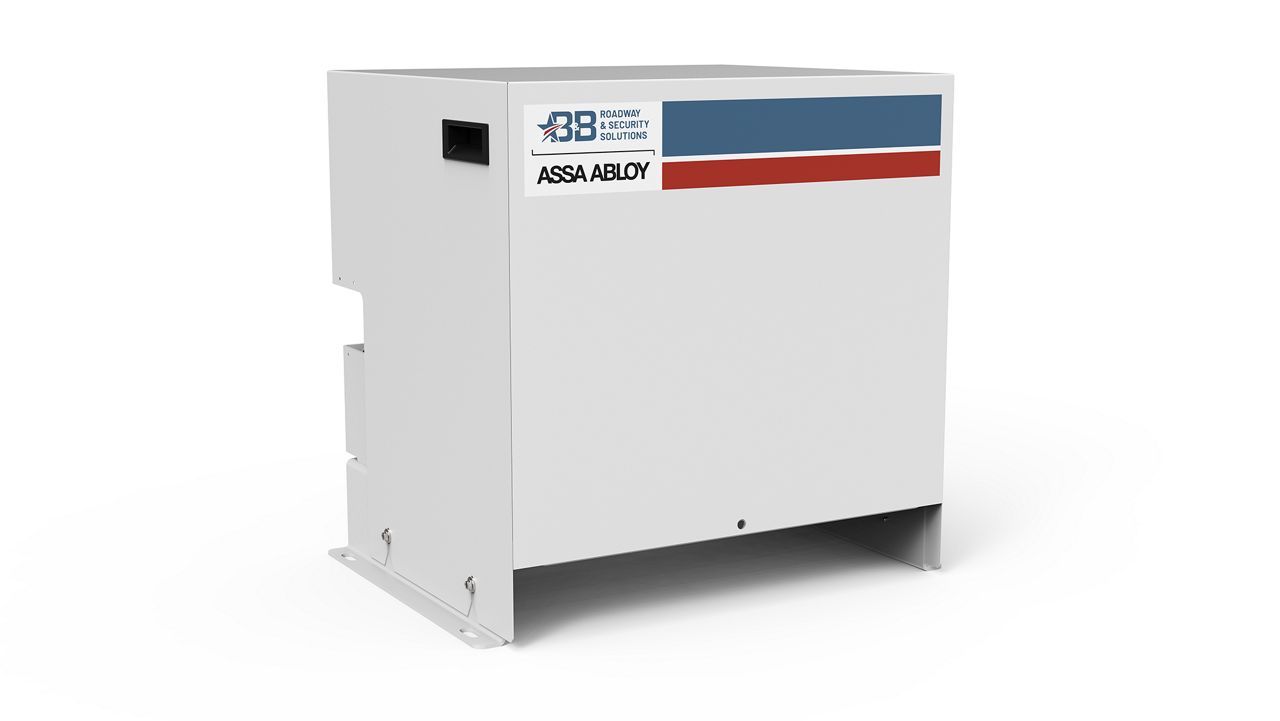

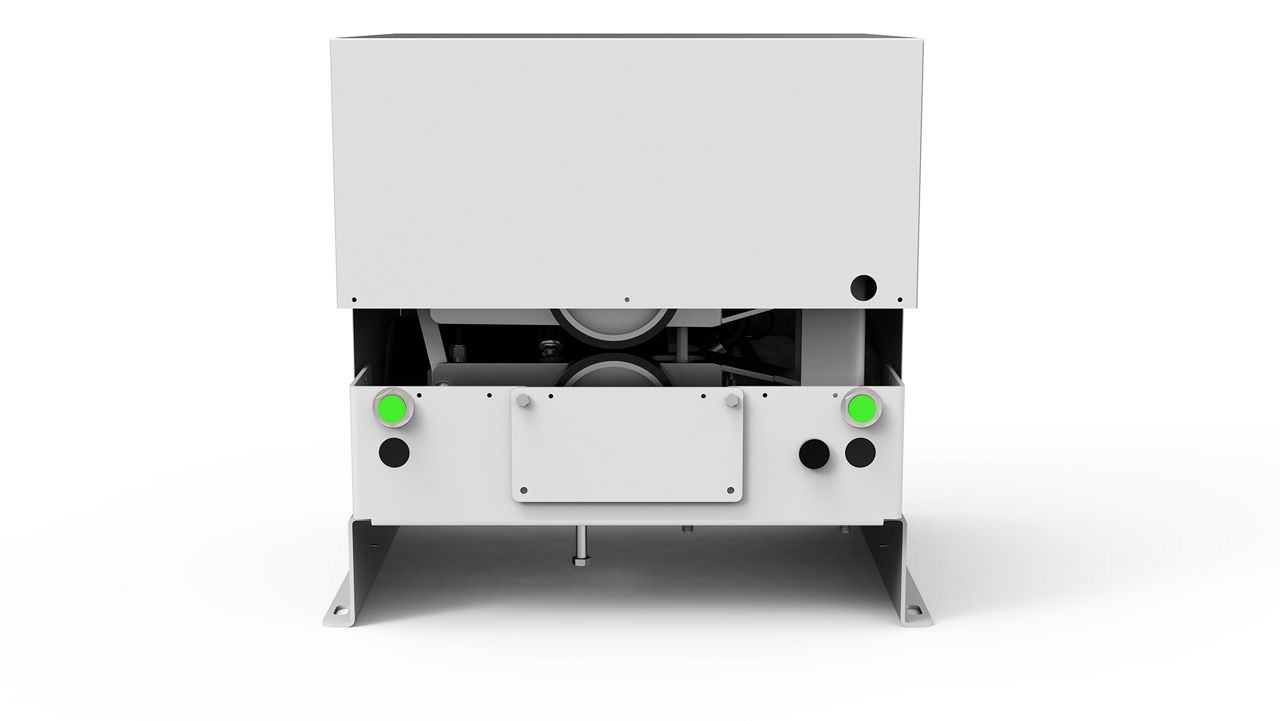

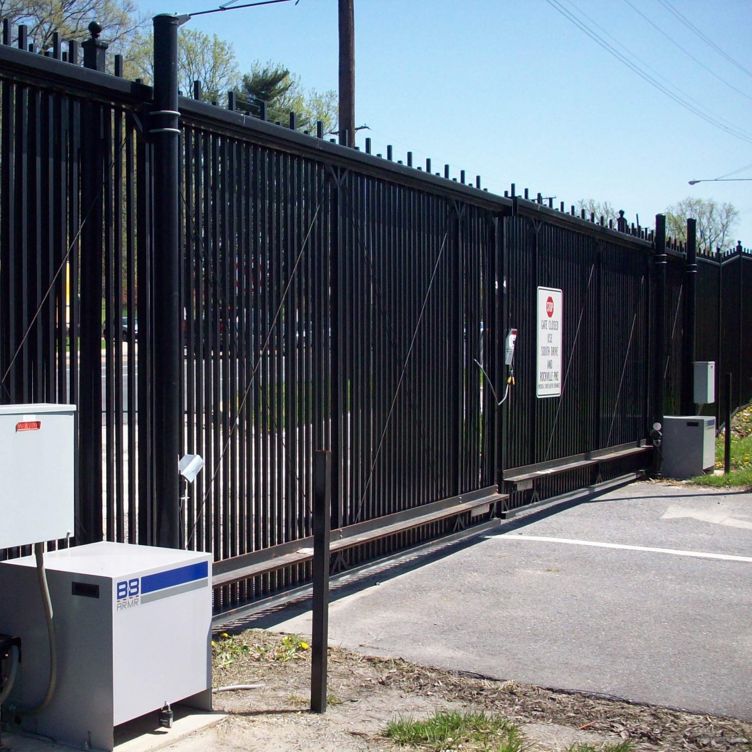

Built for industrial and high security applications the LXL is a continuous duty hydraulic gate operator that reliably drives with enough force to keep all your sites secure.

·         Powerful enough to move gates up to 3000lbs

·         Successfully tested to over 500k cycles

·         4 models to handle all standard power requirements

·         5-year warranty

·         Made in the USA

Our line of hydraulic slide gate operators is suitable for most applications. The LXL Gate Operator is a robust system for high cycle applications.

Need help on an existing project? Reach out here

1 of 4

CLASS OF OPERATION: Model LXL - UL 325 Class I, II, III, IV

TYPE OF GATE: Vehicular Slide Gates Only

DRIVE SYSTEM: Hydraulic with Aluminum Drive Rail

DUTY: Continuous

SPEED: 1 ft. per second

ENTRAPMENT PROTECTION:

·         Primary — Inherent entrapment sensing system (Type A)

·         Secondary — Provisions for connection of a monitored non-contact sensor (Type B1) and/or a monitored contact sensor (Type B2)

  • Documents

  • Flyer-LXL Operator(PDF, 1 MB)
  • Catalog-LXL Gate Operator(PDF, 661 KB)
  • Specification-LXL Gate Operator(DOCX, 64 KB)
  • Drawing-LXL Gate Operator(DWG, 3 MB)
  • LXL Architectural Drawing(PDF, 1 MB)
  • Installation Manual-LXL Operator(PDF, 53 MB)
  • Warranty-LXL Gate Operator(PDF, 86 KB)
